Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player

Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player
Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player

Großes Bild :  Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player

Produktdetails:
Place of Origin: CHINA
Markenname: SUNCHIP ADW
Zertifizierung: CE ROHS FCC ISO9001 ISO 14001
Model Number: AD-0146
Zahlung und Versand AGB:
Minimum Order Quantity: 1 Set
Preis: Verhandelbar
Packaging Details: 1pc/box, 5pcs in a carton
Delivery Time: Samples: 1-3 days; MP: 15-25 days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 30,000PCS

Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player

Beschreibung
CPU solution: RK3568 OS: ANDROID 11
DDR/EMMC: 4GB RAM/32GB ROM Display interface: LVDS/EDP/MIPI/HD OUT for display
Interface: USB X4, RS232, HD MI X2, LAN, Audio WIFI/BT: 2.4G WIFI & BT 5.2
Ethernet: 1000M LAN, Gigabit Ethernet X1 Function: WIFI, BT, Wlan, Audio, speaker,etc.
Ddr: 2GB/4GB Optional Internal Memory: 32GB/64GB/128GB(optional)
Connectivity: USB, Wi-Fi, Bluetooth Wifi Support: Yes
Osd Language: Multi-language Support Customizable Interface: Yes
Hervorheben:

Android 11 OS Media Player

,

Commercial Advertising Media Player

,

Multi Interface Media Player





Quad-core RK3568 Android  Media Player,Android 11 OS.



Product pictures

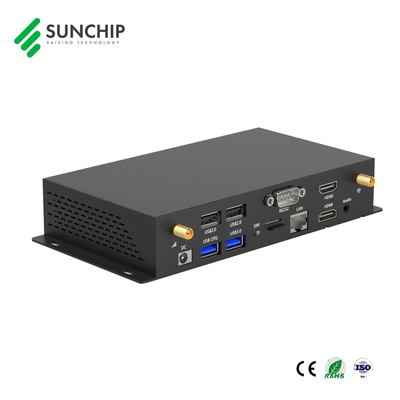

Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player 0

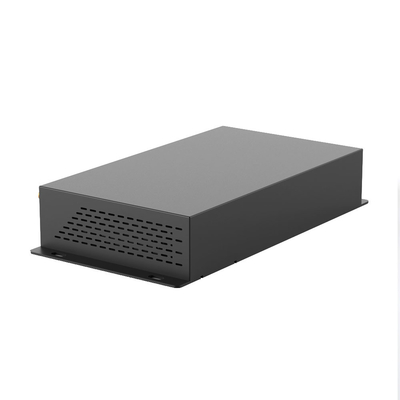

Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player 1



Products Description



Features:


High performance: The RK3288 chip uses the quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.

High stability: RK3288 Android integrated board, add their own unique technology in the hardware&software to ensure the stability of the product. To make sure the device 7*24 hours unattended.

High integration: RK3288 Android integrated board integrates Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.

Multi interfaces: 6*USB ports, 3*UART ports, can connect more peripheral devices.

Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player 2Application Field

■ Commercial advertising display machine

■ POS machine

■ Digital photo frame advertising machine

■ Touch all-in-one machine

■ Self-service vending machine

■ Vending / Kiosk

■ Media player box

■ Face recognition device

■ Roboter




Basic hardware specifications:
System CPU&GPU Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
RAM 2GB/4G (optional)
Internal Storage 8GB/16GB/32GB/64GB(optional)
OS Android 11
Network WiFi IEEE 802.11b/g/n(optional)
Ethernet Support 10/100/1000M Ethernet
Mobile Network Support wireless 4G network(optional)
Bluetooth Bluetooth5.2
Interface RS232 RS232 com port, male head DB9*1
USB 2.0 USB 2.0_A*2
HDMI_OUT_2 HDMI-A output supporting 1920*1080 60HZ
DC holder*1 DC_12V input 5.5*2.1mm plug
Headphone 3.5mm stereo headphone output
USB_OTG USB_A*1
USB 3.0 USB 3.0_A*1
HDMI_OUT_1 HDMI-A 2.0 output(supporting 3840*2160 60HZ)
SIM card SIM card slot*1(optional)
Extended memory port TF card slot*1
Button Button Upgrade button*1
Environmental Conditions Working Environment Temperature:-20~60,5%-85%RH (No condensation)
Storage environment Temperature:-20~70,5%-95%RH (No condensation)
Material Shell material Metal
Size Product Size Shell size:190.6*98.9*34.7mm




WELCOME TO INQUIRY US ANY TIME. THANKS IN ADVANCE!





About Sunchip



Established in 2011, Shenzhen Sunchip Technology Co., Ltd. is a comprehensive enterprise integrating design, research, development and production in digital consumer electronics products and solution provider.



We mainly manufacture

1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android media player box for digital signage advertising: RK3568, RK3399, RK3288, RK3328.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, LCD digital signage: 10.1inch, 15.6inch, 21.5inch etc.

5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

6, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.





Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player 3Packing & Delivery

1.Packing: carton box or wood case

2.Payment methods: accept T/T,Western Union,Paypal and Cash.

3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.

4.Warranty: 12 months warranty. Paid maintenance over 12 months.

5.Remark: ROHS, CE & FCC certificates in e-file format are available.

6.MOQ: 1pc, sample order are welcome for your evaluation.


Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player 4
Why Choose Us
1.We are a professional indoor & outdoor digital signage complete solution & mass production technoloy provider. 2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development. 3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 15 years of experience gives us the edge! 4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages. 5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength. 6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.
Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player 5



New Arrival!!!
Android 11 OS Media Player with Multi-Interface Support for Commercial Advertising Player 6

8K RK3588 AIot Edge Computing industrial box with rich interfaces, which suitable for intelligent remote network control: AIoT , industrial, medical, large advertising, educational video terminals and other equipment.

Here is the product image , few box in stock now, welcome to contact me to get more details information.
