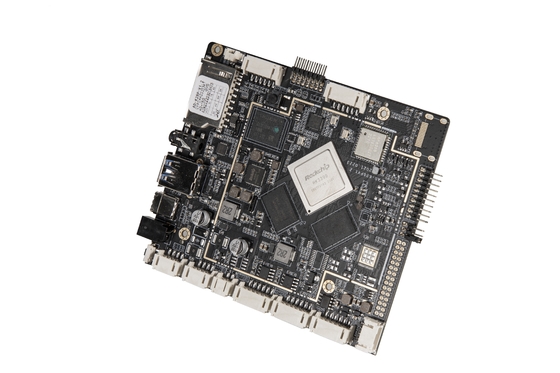

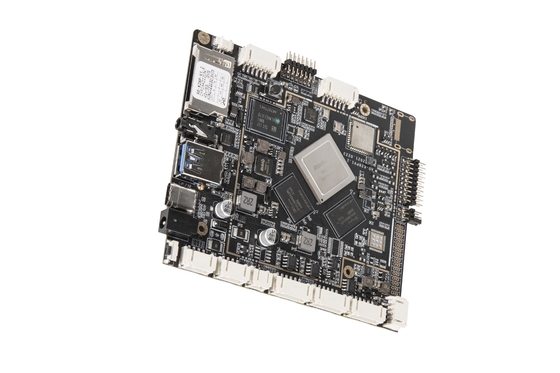

RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity

RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity
RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity
RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity

Großes Bild :  RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity

Produktdetails:
Herkunftsort: KN-Nummer
Markenname: ADW SUNCHIP
Modellnummer: Die Angabe des Zulassungsdatums ist in der Angabe des Zulassungsdatums anzugeben.
Zahlung und Versand AGB:
Min Bestellmenge: 1 Stück
Preis: Verhandelbar
Verpackung Informationen: 1 Stück/Blasenbeutel, richtige Menge in einem Karton
Lieferzeit: 1~3 Tage, wenn Lagerbestände vorhanden sind, 15-25 Tage, wenn keine Lagerbestände vorhanden sind
Zahlungsbedingungen: T/T, Western Union, L/C, MoneyGram
Versorgungsmaterial-Fähigkeit: 1,00,000pcs pro Monat
Kontakt

RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity

Beschreibung
CPU: RK3399 Cortex A72 + Quad-Kern-Kortex A53 GPU: Die Daten sind in Anhang I der Verordnung (EG) Nr. 45/2001 enthalten.
Ram: 4 GB eMMC: 16GB/32GB/64GB optional
MIPI-Schnittstelle: maximale Entschließung 1920*1080 Berührungsschirm: I2C-Schnittstelle, USB-Note
RJ45: Unterstützung von 10/100 /1000 Ethernet WIFI/BT: Unterstützung
Bild-Rotation: Unterstützung 0 Grad, 90 Grad, 180 Grad, 270-Grad-Handbuch/Selbstrotation, Schwerkraft-Sensor-Funkti Anzeigeoberfläche: LVDS/MIPI/EDP
Gewährleistung: 1 Jahr
Hervorheben:

RK3399 Android Embedded Board

,

Capacitive Touch Android Embedded Board

,

RJ45 Interface Android Embedded Board

RK3399  Rockchip Android Board​

Product Specifications

  • Hardware specifications
CPU Rockchip RK3399 dual-core Cortex-A72+ quad-core Cortex-A53 CPU
GPU ARM Mali-T860MP4 GPU
Run and save LPDDR4 4G
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (label 16GB)
Display interface LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
  EDP screen interface, maximum resolution 4K
  MIPI screen interface, maximum resolution 1920*1080
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (multi-point capacitive touch)

Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch
Network With RJ45 interface, support 10/100 Ethernet
  Equipped with Wifi&BT module, supporting Wi-Fi 802.11a/b/g/n/ ac protocol. Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, gravity sensor function (optional)
Real Time Clock External real-time clock power supply battery
Interface device Support MIPI interface camera
  6 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
  2 groups of UART, 1 group of SPI or 1 group of UART, 2 groups of SPI. Support external serial devices (NFC module, printer, card reader, etc.)
  SD card, maximum support 64GB
  Class D power amplifier: 3W*2 8 ohms, support microphone
  HDMI 2.0 output
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation/image enlargement function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A

Characteristic:

  • Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
  • Support EDP interface display screen.
  • Support MIPI interface display screen.
  • Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
  • Multi-channel USB interface, serial port, IO port output.
  • Support 4K video playback and HDMI 2.0 high-definition output.
  • Strong anti-electromagnetic interference and electromagnetic compatibility.



RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity 0RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity 1






About Sunchip



RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity 2

Established in 2011, Shenzhen Sunchip Technology Co., Ltd. is a comprehensive enterprise integrating design, research, development and production in digital consumer electronics products and solution provider. Our factory is located in Baoan district, Shenzhen city, near with Baoan International airport, which has more than 3200 square meters of standardized office base.

Our company has been committed to the R and D and innovation in the field of digital electronics, complete and scientific quality management system and professional R&D team, strong product research and development, production capacity and perfect service system, make the company always keep the lead in the related fields.



FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),North America(11.00%),Eastern Asia(6.00%),Southeast Asia(5.00%),South America(3.00%),Western Europe(3.00%),Eastern Europe(2.00%),Oceania(2.00%),Mid East(2.00%),Central America(2.00%),Africa(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wireless charger,Digital Photo Frame,Advertising machine,Commercial media box,ARM board

4. why should you buy from us not from other suppliers?
- 15 years of R&D and production experience - More than 100 R&D team - Over 3000 square meters' factory space - Pocessing fully automatic assembly lines and high request working team - Owning CE/ROHS/FCC & national high-tech enterprise and patents

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
